Mini Trunking
Economical & Space-saving Mini Trunking Products
Space Saving
For storage and easy installation, our mini trunkings cause less cluttering with their small size, ideal for small or indoor spaces.

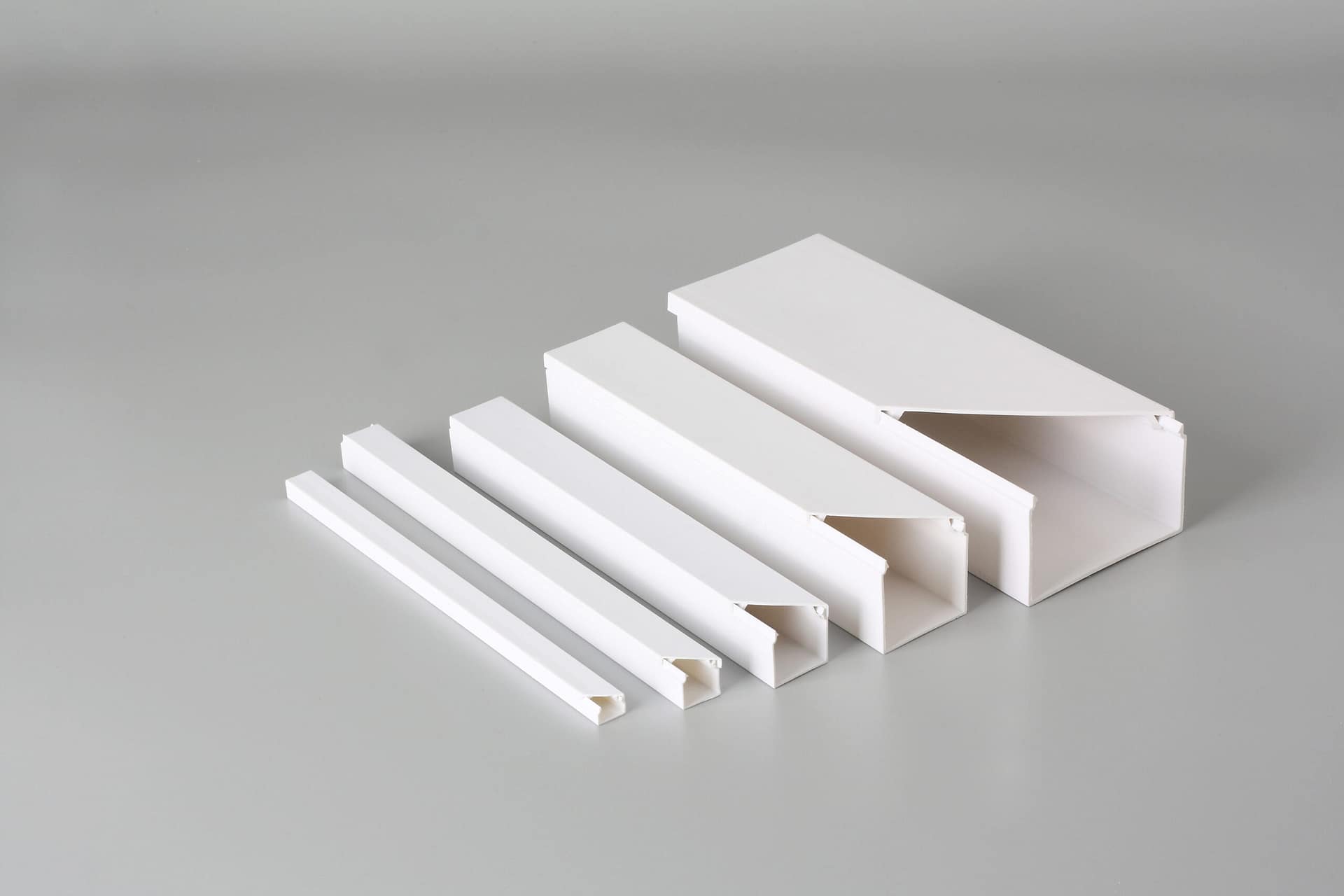

Wide Size Range
To give your customers more options to fit different applications, we provide a range of sizes from 10*10 to 40*40 and achieve a minimum thickness of 0.5 mm.
Higher Safety Performance
Passing thorough quality inspections, our trunkings are constructed with accuracy and using fireproof PVC-U to prevent short circuiting and other hazards.
Longer Service Life
Budgie products are added with rutile titanium dioxide, which can improve the heat resistance, light resistance and weather resistance of plastic products. The strengthening of our trunking products ensures the safety of the cable for long-term use.
Related Accessories
External Angle

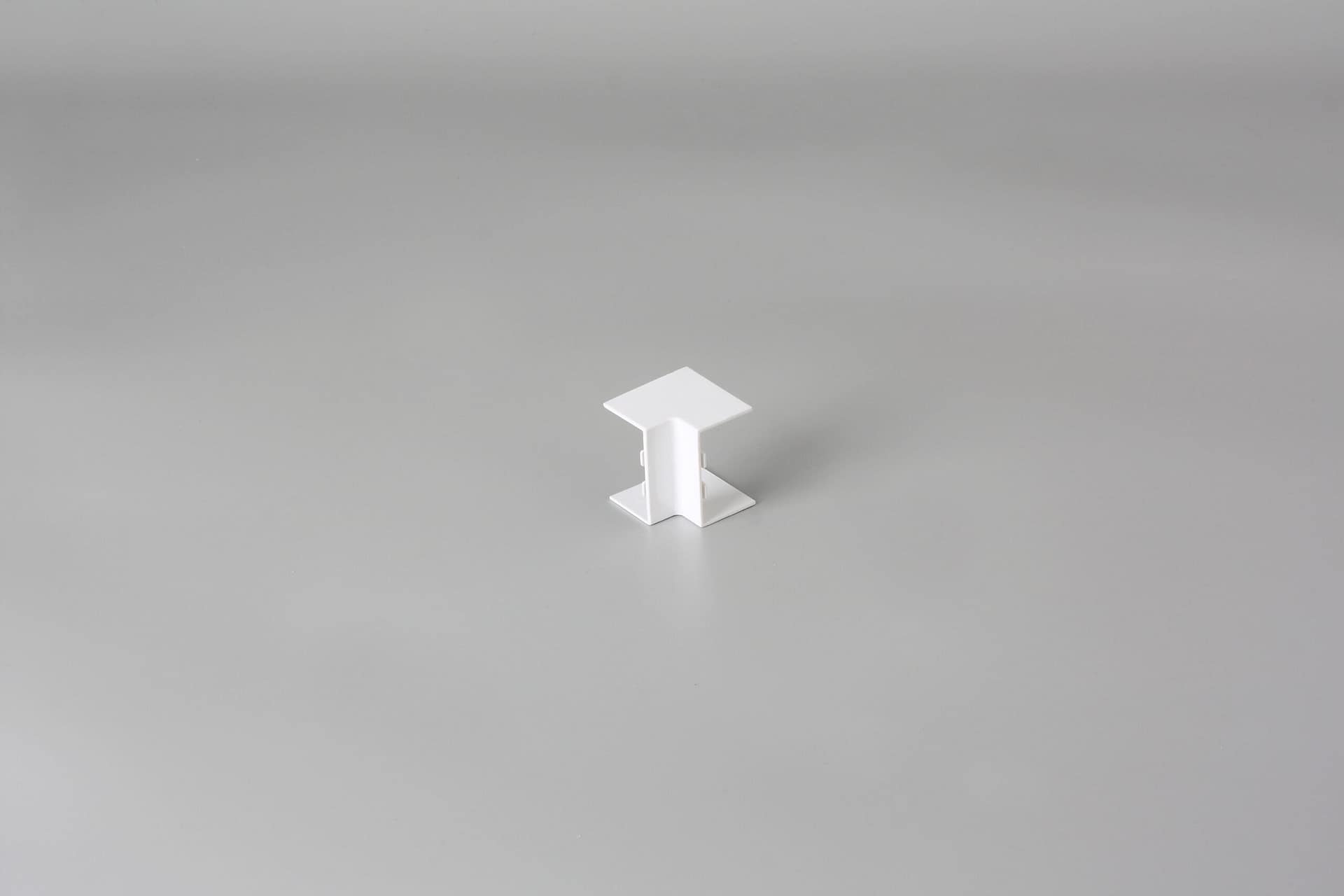

Internal Angle
Flat Angle
Tee Angle
End Cap

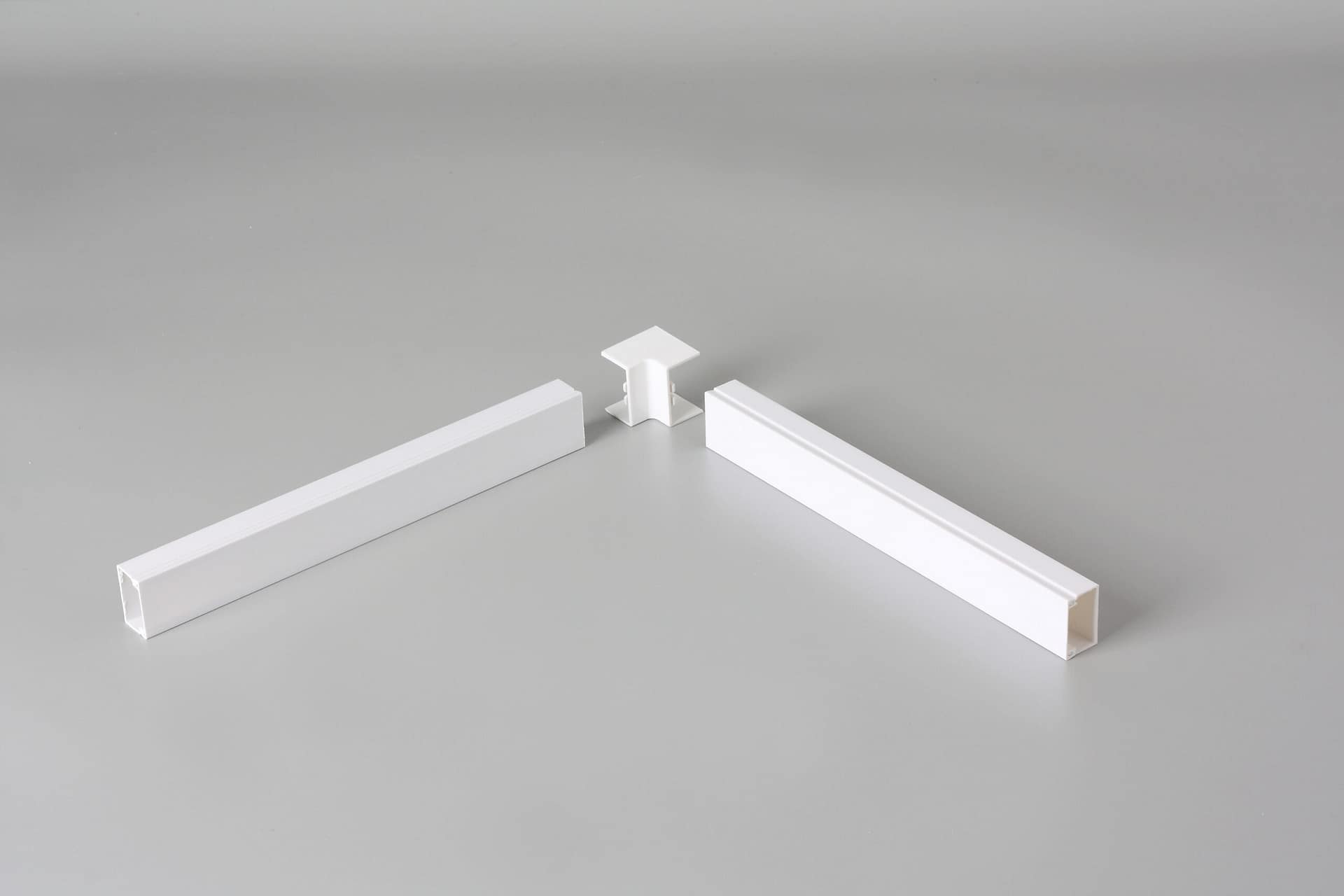

Joint Cover
Application of Slot Wiring Duct (A)
Application of Slot Wiring Duct (A)
Application of Slot Wiring Duct (A)
Style: 16mm-75mm High
Style: 80mm-150mm High
Specifications
| Model | Size-W*H (mm) |
Thickness (mm) |
Pack (pcs/bag) |
Wire Capability/2.0m² | Trunking Fittings |
| YUAN-1010 | 10×10 | 0.6 | 50 | 1-3pcs | |
| YUAN-128 | 12×8 | 0.7 | 50 | 1-3pcs | |
| YUAN-147 | 14×7 | 0.55 | 50 | 1-3pcs | |
| YUAN-1212 | 12×12 | 0.55/ 0.6/ 0.75 | 50 | 3-8pcs | |
| YUAN-1510 | 15×10 | 0.5/ 0.58/ 0.75 | 50 | 3-8pcs | ✓ |
| YUAN-1616C | 14×13 | 0.46/ 0.58 | 40 | 3-8pcs | |
| YUAN-1616B | 15×15 | 0.58/ 0.85 | 40 | 3-10pcs | |
| YUAN-1616 | 16×16 | 0.58/ 0.63/ 0.7/0.85/ 1.0/ 1.2 | 40 | 3-10pcs | ✓ |
| YUAN-189 | 18×9 | 0.55 | 50 | 3-10pcs | |
| YUAN-1810 | 18×10 | 0.8 | 50 | 5-15pcs | |
| YUAN-2010 | 20×10 | 0.5/ 0.6/ 0.63/ 0.75 | 40 | 8-12pcs | ✓ |
| YUAN-2310 | 22.6×10 | 1.2 | 40 | 10-25pcs | |
| YUAN-2313 | 23×13 | 0.55/ 0.61 | 25 | 10-25pcs | |
| YUAN-2414 | 24×14 | 0.7/ 0.85 | 25 | 10-25pcs | ✓ |
| YUAN-2516C | 24×15 | 0.46 | 25 | 10-25pcs | |
| YUAN-2516B | 24.5×15.5 | 0.6/ 0.63/ 0.75/ 0.85/ 0.95 | 25 | 10-25pcs | |
| YUAN-2512 | 25×12 | 0.58 | 25 | 8-20pcs | |
| YUAN-2516 | 25×16 | 0.53/ 0.58/ 0.63/ 0.7/0.75/ 0.9/ 1.0/ 1.2 | 25 | 10-25pcs | ✓ |
| YUAN-2525 | 25×25 | 0.8/ 1.0 | 20 | 10-25pcs | ✓ |
| YUAN-2913B | 28.5×13 | 0.55/ 0.65 | 20 | 10-25pcs | |
| YUAN-2913 | 29X13 | 0.9 | 20 | 10-25pcs | |
| YUAN-3010 | 30×10 | 0.8 | 25 | 8-15pcs | |
| YUAN-3015 | 30×15 | 0.65/ 0.76/ 0.9 | 20 | 8-15pcs | |
| YUAN-3030 | 30×30 | 1.1 | 15 | 35-45pcs | |
| YUAN-3212 | 32×12 | 1 | 20 | 10-15pcs | |
| YUAN-3616 | 36×16 | 0.7 | 15 | 25-35pcs | |
| YUAN-3717 | 37×17 | 0.75 | 15 | 25-35pcs | |
| YUAN-3817 | 38×17 | 0.66 | 15 | 25-35pcs | |
| YUAN-3822 | 38×22 | 0.66/ 0.9 | 10 | 25-35pcs | |
| YUAN-3825 | 38×25 | 0.68/ 1.0 | 10 | 25-35pcs | |
| YUAN-3919 | 39×19 | 0.8/ 0.9/ 1.15/ 1.3 | 15 | 25-35pcs | ✓ |
| YUAN-4010 | 40×10 | 0.8 | 20 | 10-25pcs | |
| YUAN-4016 | 40×16 | 0.63/ 0.7/ 1.0 | 15 | 15-30pcs | ✓ |
| YUAN-4020 | 40×20 | 0.9/ 0.95/1.1 | 15 | 15-30pcs | |
| YUAN-4025 | 40×25 | 0.68/ 0.74/ 0.8/ 1.0/ 1.35 | 10 | 25-40pcs | ✓ |
| YUAN-4040 | 40×40 | 1.1/ 1.3 | 8 | 60-70pcs | ✓ |
| REMARK: | |||||

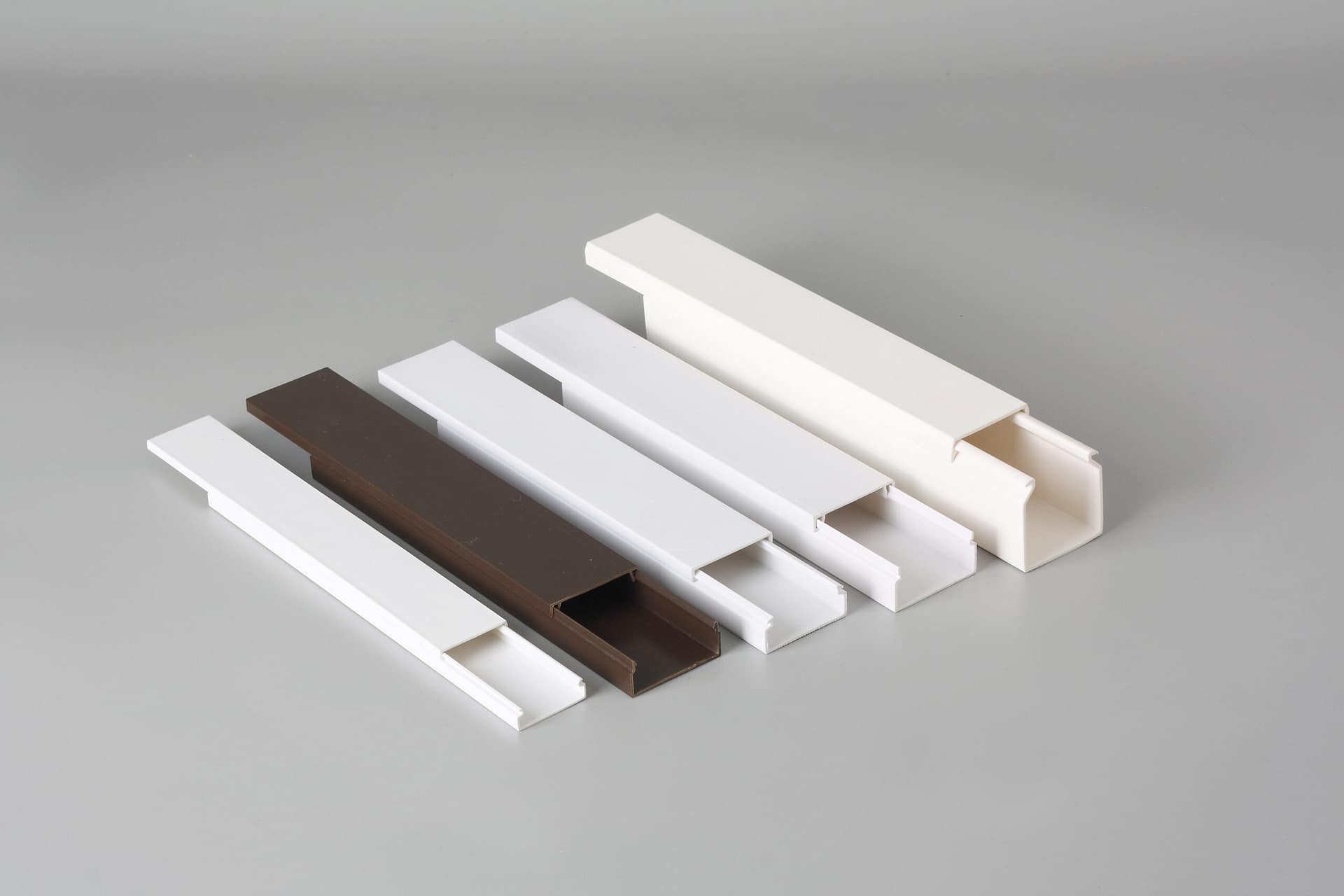

| 1. Color : white, bluish white, dark grey , brown. | |||||
| 2. Bottom fasten holes should be requested by order. Normal type is without fasten holes. | |||||

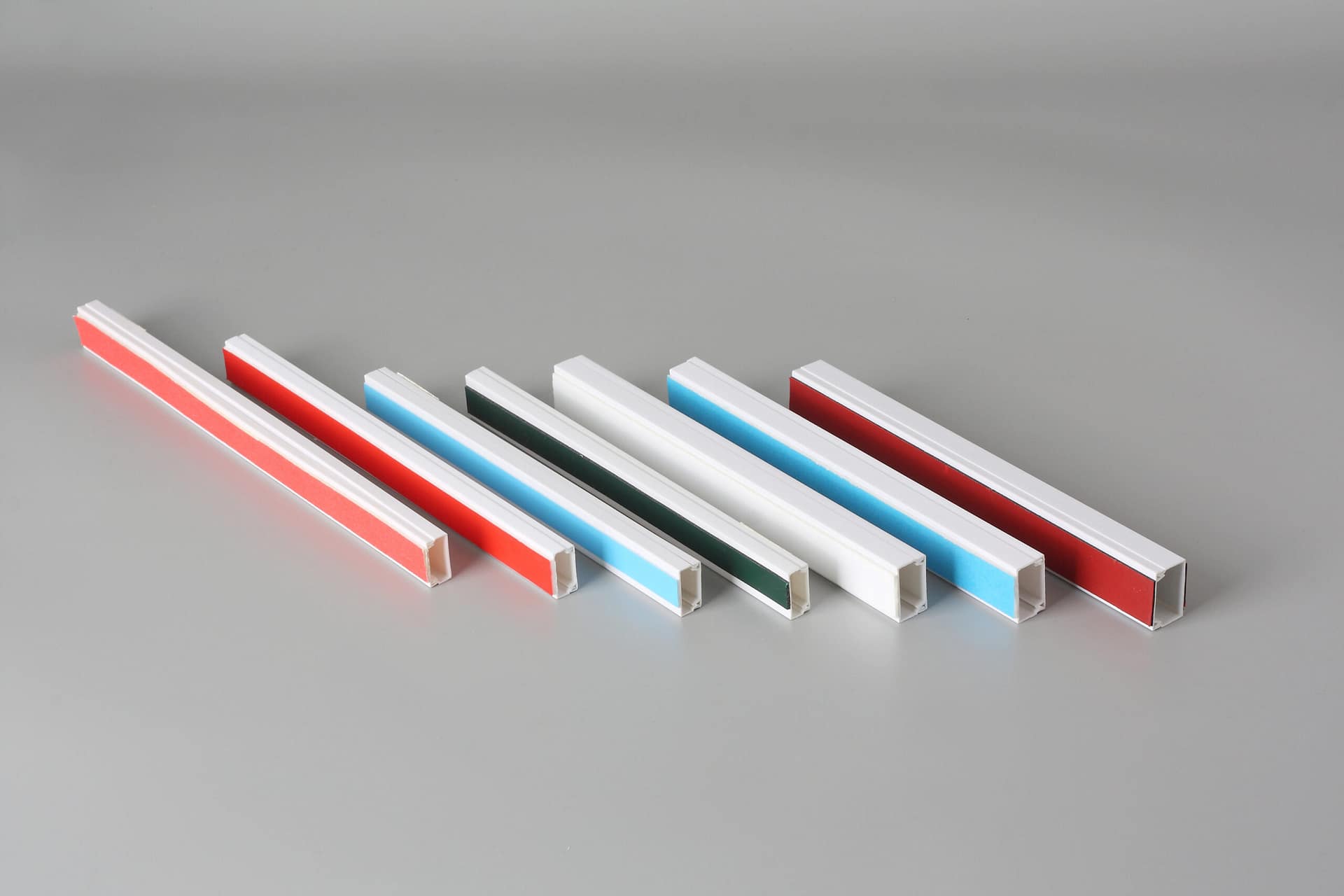

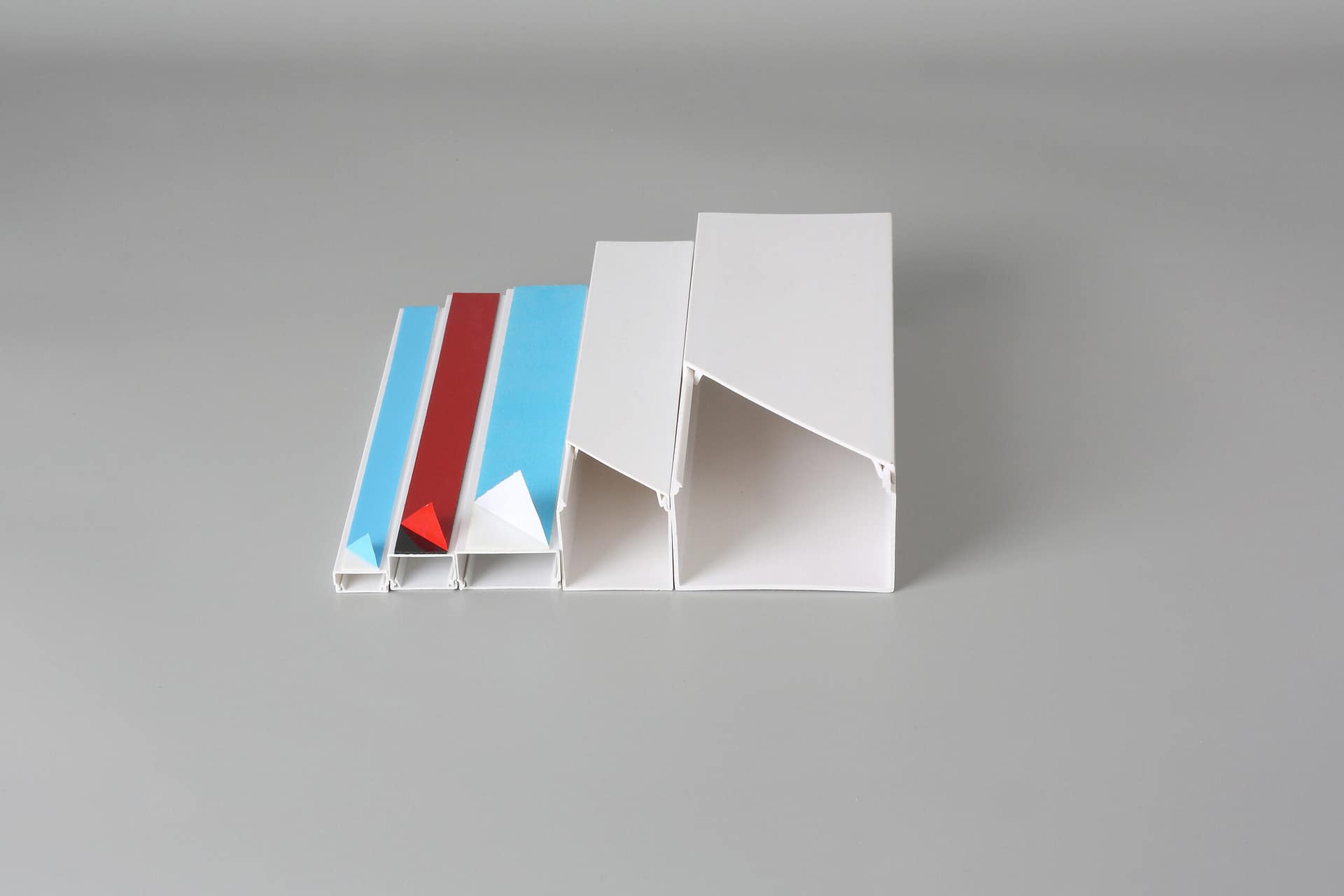

| 3. Can with adhesive tape or without adhesive tape on bottom. | |||||
Specifications
Specifications
Secondary Fabrication for Your Choice
If you have a preferred thickness for your products or want to add punches or adhesive tapes, let us know and we can make the appropriate adjustments to fit your demands.
What Budgie Does Better
Full Range
A complete range of PVC-U trunking products makes sure we have what you need.
Superior Quality
Keen attention to detail, from selecting materials to injection molding.
Streamlined Production
In-house production allows for faster and well-managed output.
Expert QC Team
Seasoned auditors diligently ensure consistency in aesthetics and performance.
Safe Deliveries
Products are protected by durable wooden boxes for guaranteed safe shipments.
Comprehensive Tech Support
Get all the support you need from a professional technical support team.
