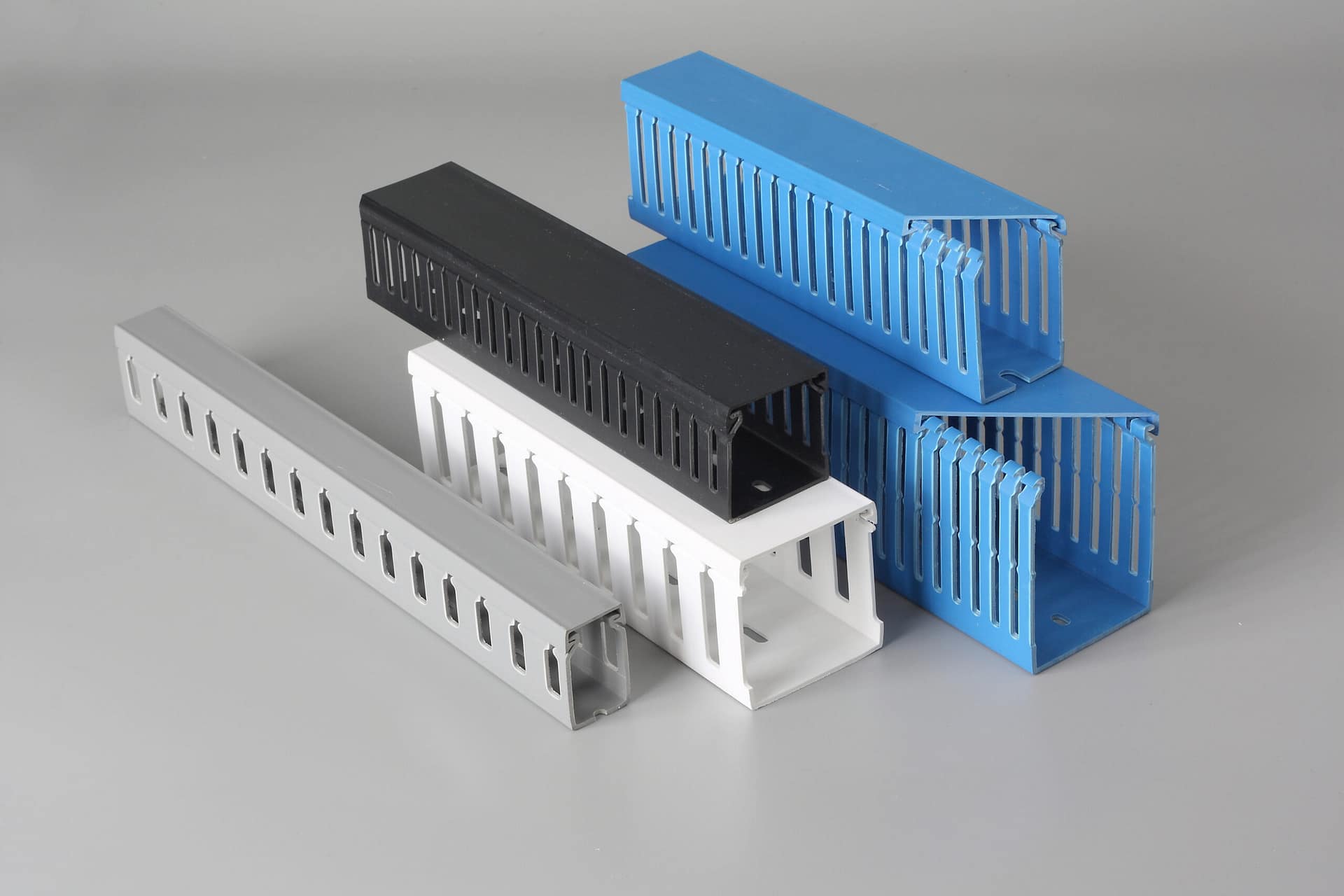

Open Slotted Trunking
Flexible Slot Wiring Ducts Solutions
Previous
Next
Application of Slot Wiring Duct (A)

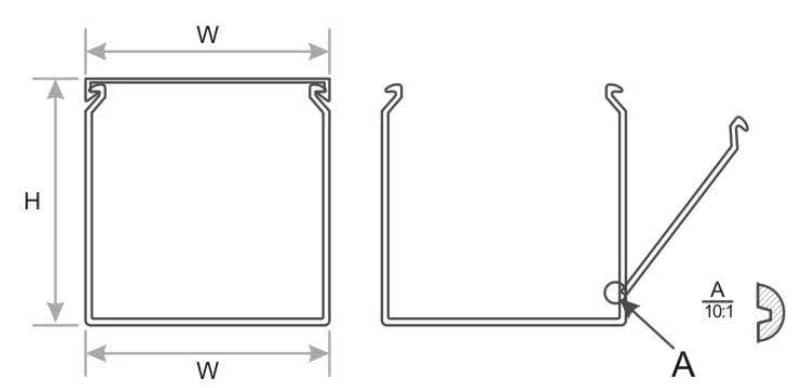

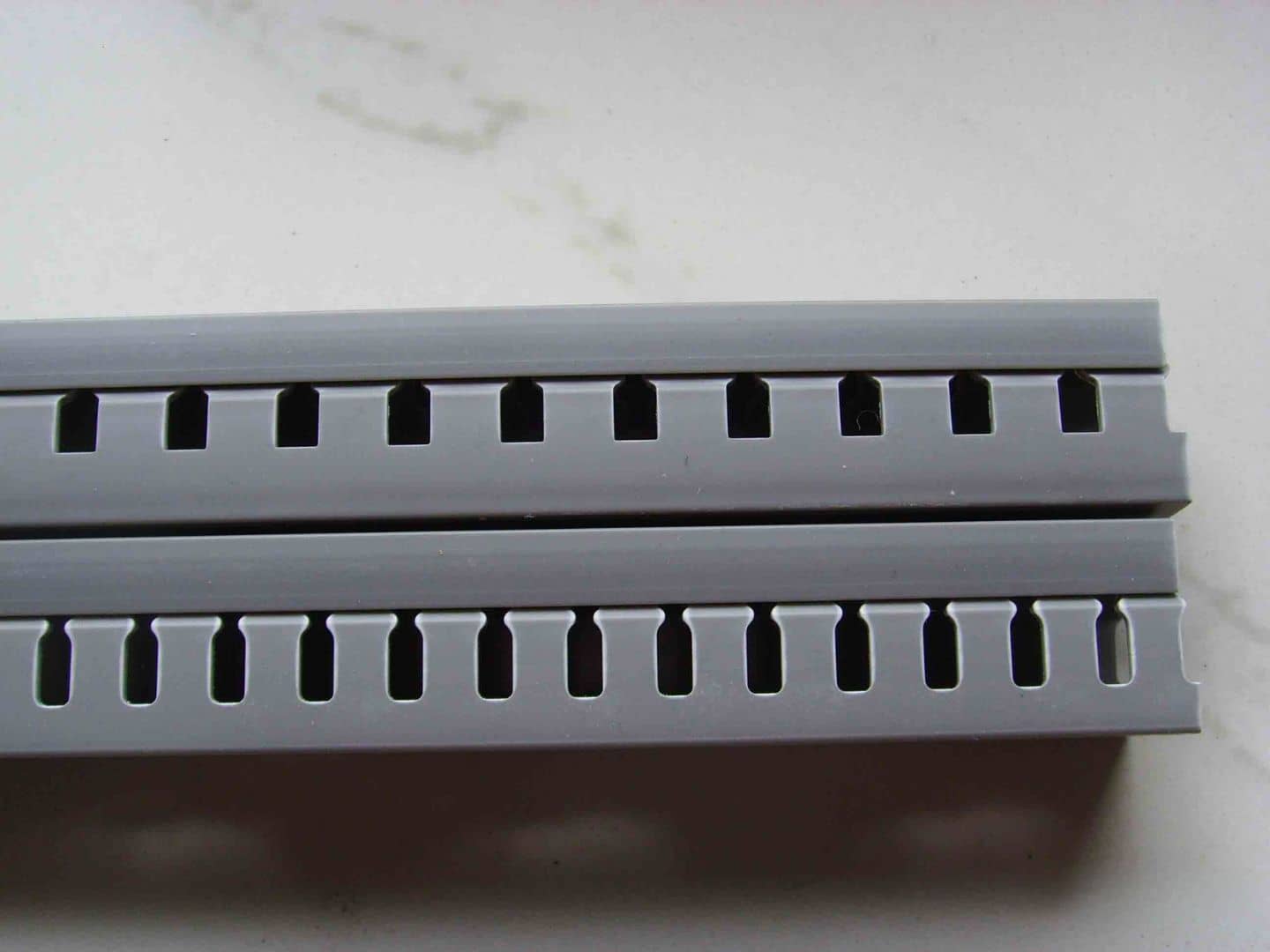

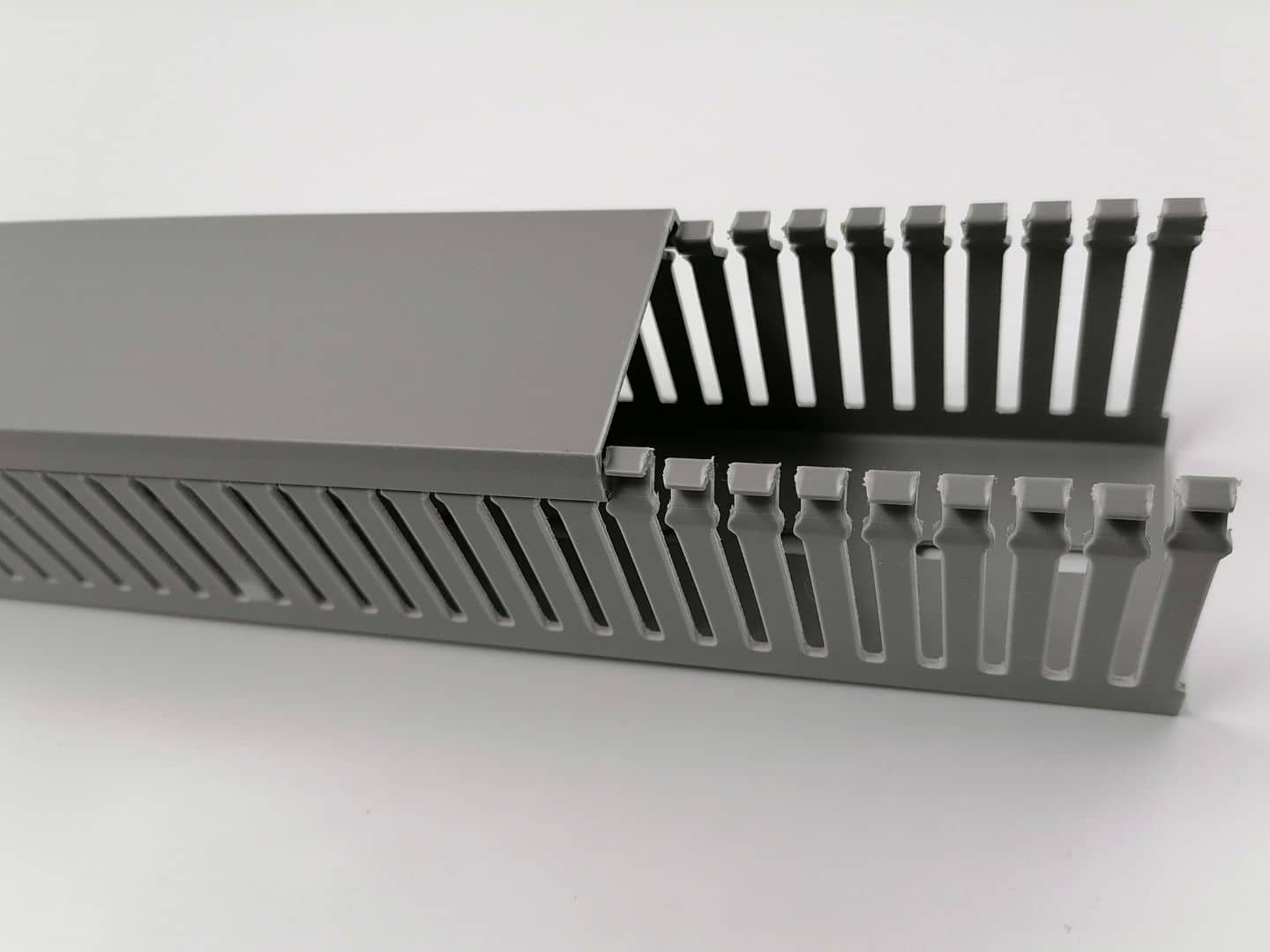

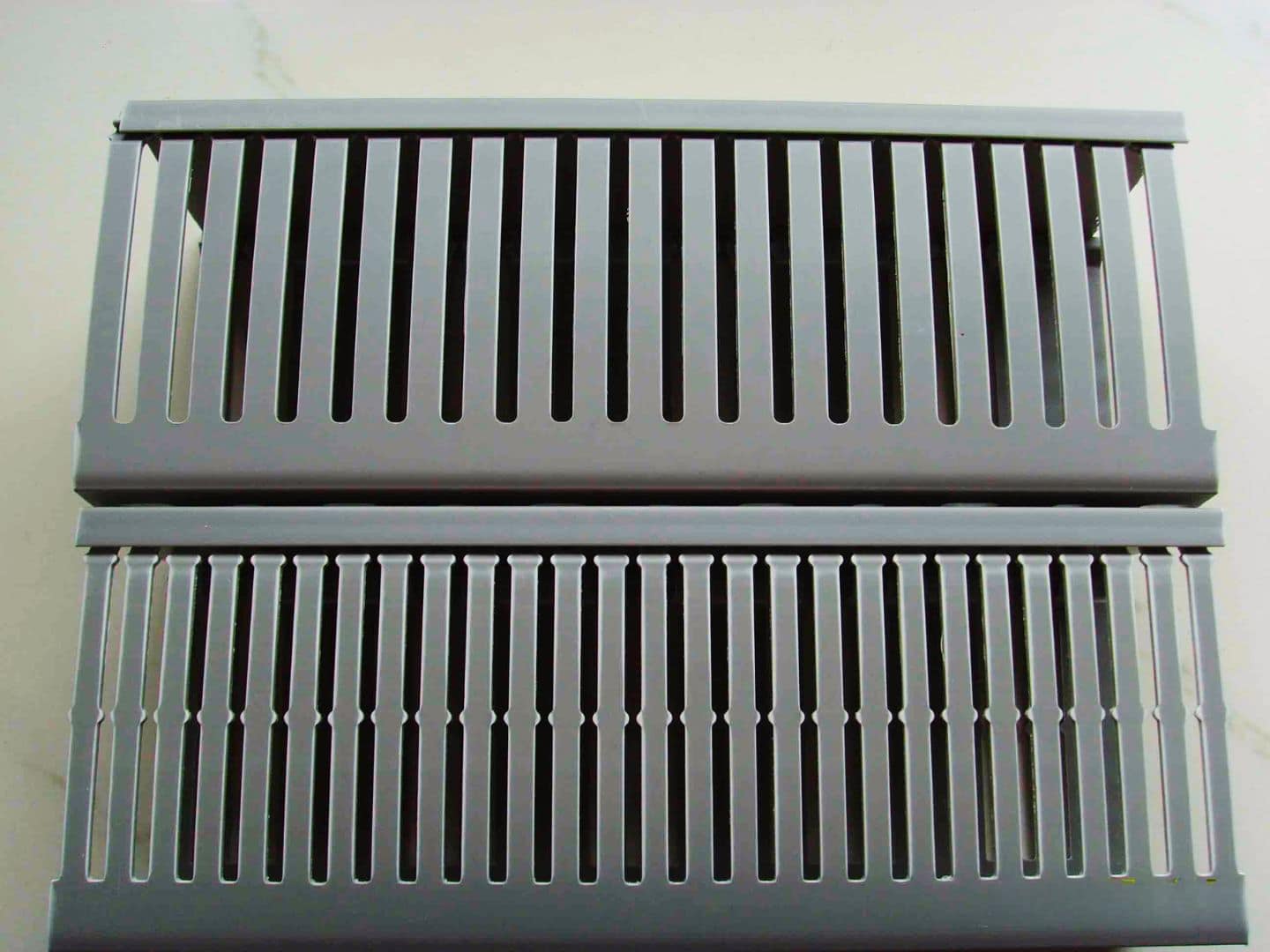

Structure of Slot Wiring Duct (A)

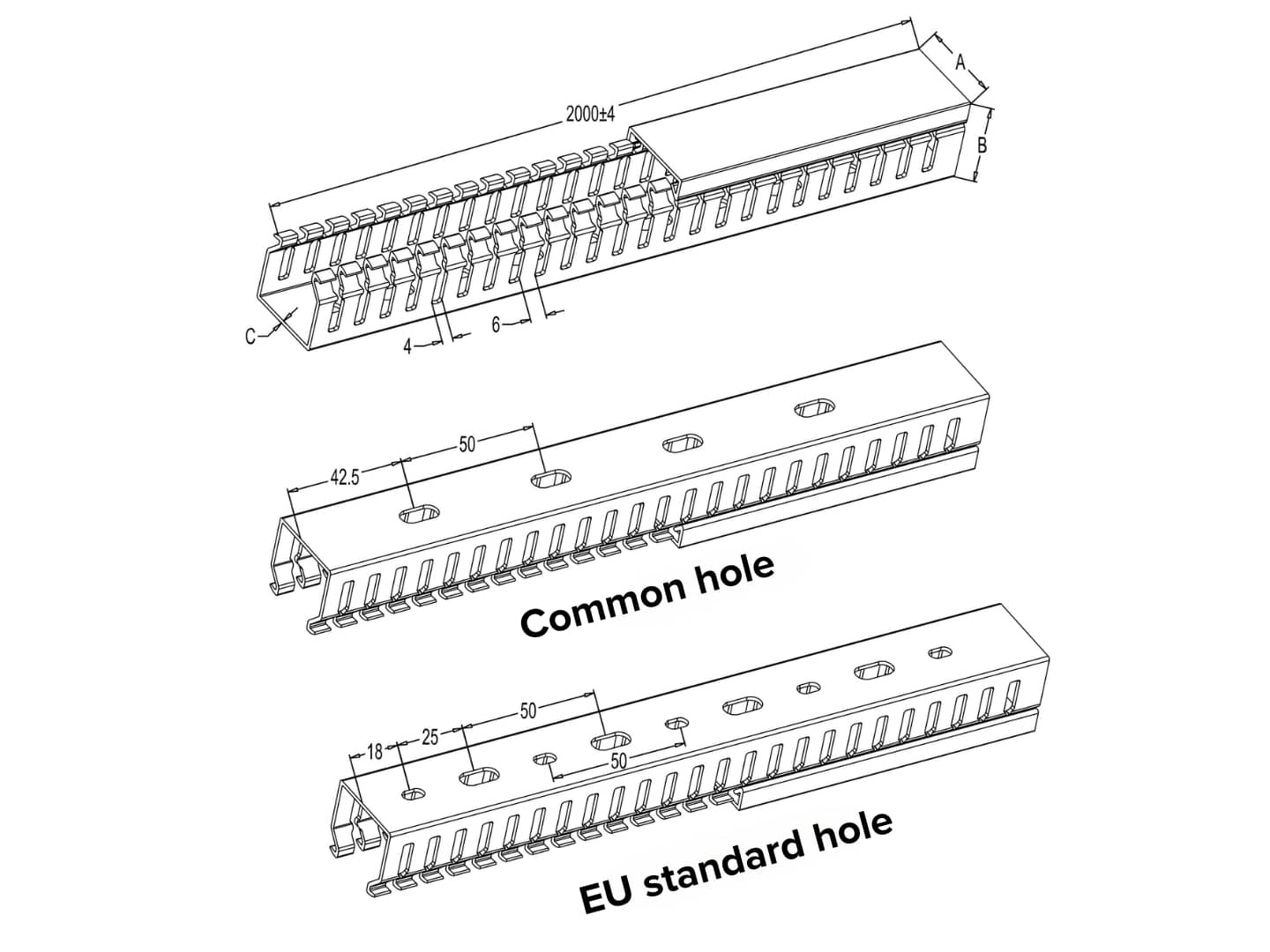

Punching Details Shown on the Drawings

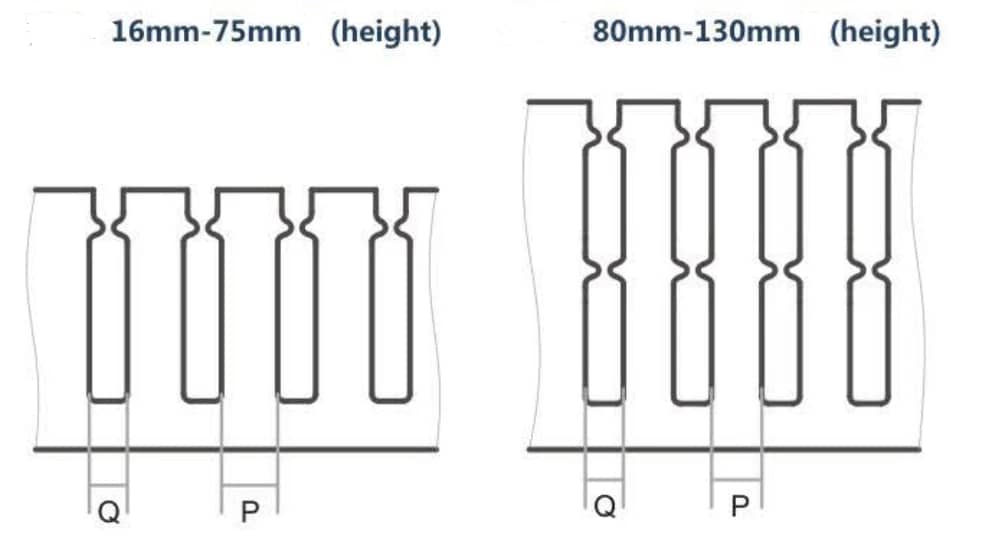

Type: 16mm-75mm Width
Type: 80mm-150mm Width
Specifications
Specifications
Specifications
| Model | Size(mm) W*H |
Thickness (mm) |
Pack (pcs/bag) 1pc=2 meters |
Option 1 | Option 2 | Option 3 | |||
| Slot Width (mm) Q |
Finger Width (mm) P |
Slot Width (mm) Q |
Finger Width (mm) P |
Slot Width (mm) Q |
Finger Width (mm) P |
||||
| SDC-1616 | 16×16 | 1.25 | 100 | 4 | 6 | 5 | 8 | 8 | 10 |
| SDC-2020 | 20×20 | 1.25 | 70 | 4 | 6 | 5 | 8 | 8 | 10 |
| SDC-2525 | 25×25 | 1.35 | 60 | 4 | 6 | 5 | 8 | 8 | 10 |
| SDC-2530 | 25×30 | 1.35 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-2540 | 25×40 | 1.35 | 56 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-2545 | 25×45 | 1.35 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-2550 | 25×50 | 1.55 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-2560 | 25×60 | 1.6 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-2565 | 25×65 | 1.6 | 44 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-2580 | 25×80 | 1.75 | 36 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3030 | 30×30 | 1.45 | 60 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3050 | 30×50 | 1.55 | 42 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3060 | 30×60 | 1.55 | 42 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3080 | 30×80 | 1.95 | 28 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3333 | 33×33 | 1.35 | 44 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3345 | 33×45 | 1.35 | 52 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3365 | 33×65 | 1.95 | 22 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-33100 | 33×100 | 1.55 | 40 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3535 | 35×35 | 1.45 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3550 | 35×50 | 1.55 | 40 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-3580 | 35×80 | 1.95 | 28 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-4040 | 40×40 | 1.35 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-4060 | 40×60 | 1.75 | 36 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-4080 | 40×80 | 1.95 | 24 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-40100 | 40×100 | 1.95 | 22 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-4545 | 45×45 | 1.45 | 36 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-4565 | 45×65 | 1.55 | 30 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-5030 | 50×30 | 1.5 | 50 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-5035 | 50×35 | 1.5 | 44 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-5050 | 50×50 | 1.75 | 30 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-5080 | 50×80 | 1.95 | 20 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-50100 | 50×100 | 1.95 | 20 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-6040 | 60×40 | 1.55 | 34 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-6060 | 60×60 | 1.95 | 24 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-6080 | 60×80 | 1.95 | 16 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-60100 | 60×100 | 1.95 | 16 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-6545 | 65×45 | 1.55 | 25 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-6565 | 65×65 | 1.55 | 20 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-8040 | 80×40 | 1.95 | 24 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-8080 | 80×80 | 1.95 | 12 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-80100 | 80×100 | 1.95 | 12 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-10050 | 100×50 | 2.15 | 14 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-10080 | 100×80 | 2.15 | 12 | 4 | 6 | 5 | 8 | 8 | 12 |
| SDC-100100 | 100×100 | 2.25 | 12 | 4 | 6 | 5 | 8 | 8 | 12 |
| REMARK: | |||||||||
| 1. Color : Dark grey, white, blue,organge,and black. | |||||||||
| 2. ” A” for scoreline design as customer request. | |||||||||
Secondary Fabrication for Your Choice
If you have a preferred thickness for your products or want to add punches or adhesive tapes, let us know and we can make the appropriate adjustments to fit your demands.
Enriching Your Business With Budgie’s Capabilities
Rich Selection
We offer a one-stop-shop service for all slotted cable trunking products.
High-Grade PVC Solutions
The slotted cable trunking products are easy-to-install and are designed for easy cable management.
Advanced Manufacturing Equipment
Through our factory equipment, we can complete bulk orders with a short lead-time.
Strict QC process
The QC system we follow prevents any defects on our PVC-C trunking products.
Fast Delivery
Budgie’s connection with logistic companies ensure an efficient shipment of your orders.
Extensive Aftersales Support
For installation and other concerns or questions, our staff can assist you anytime.
