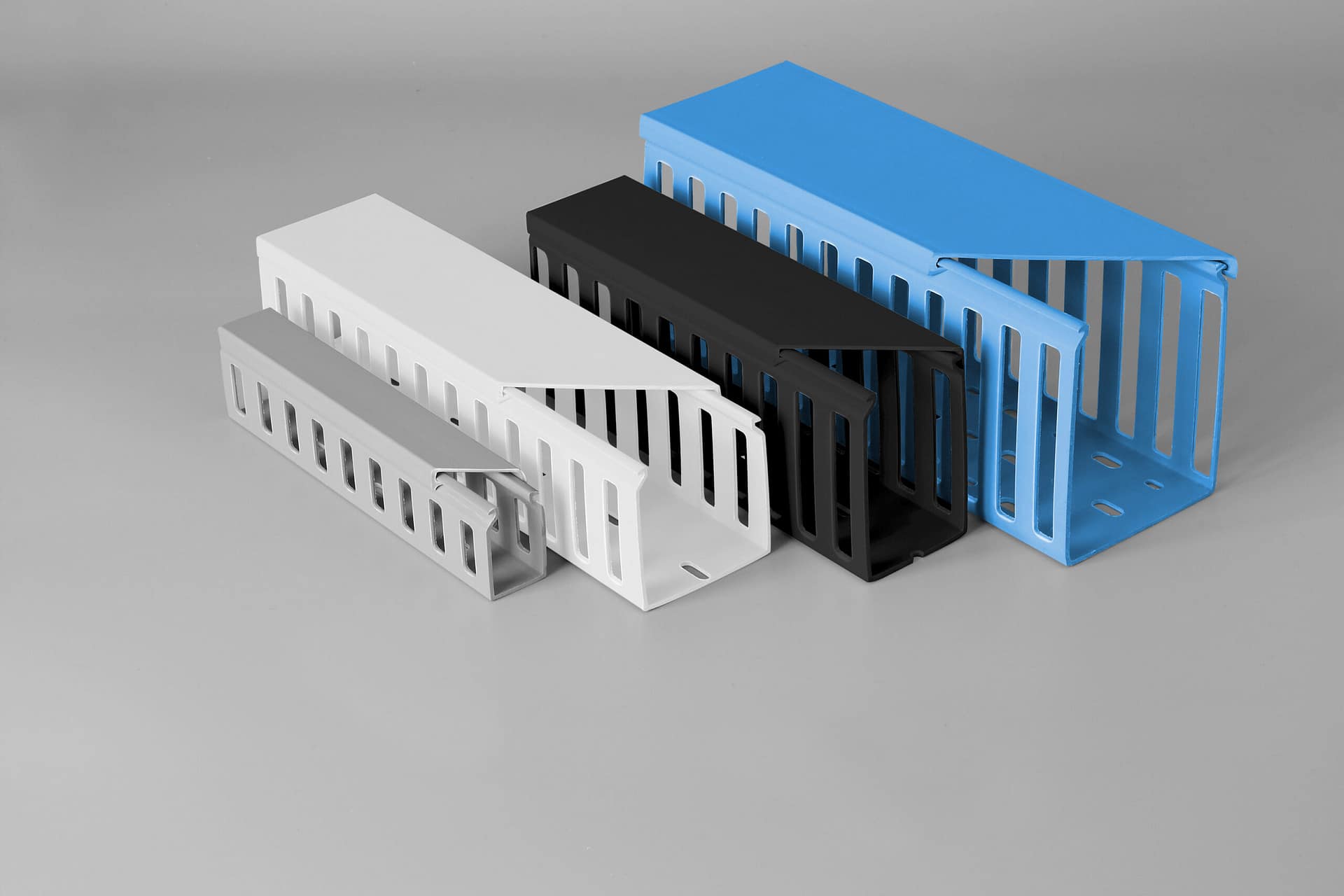

Closed Slotted Trunking
Trusted Wide Close Slot Wiring Duct Supplier
Previous
Next
More Concise Application
Protect Both Users and Wires
Flame-Resistant PVC
Faster Installation
Application of Slot Type Trunking

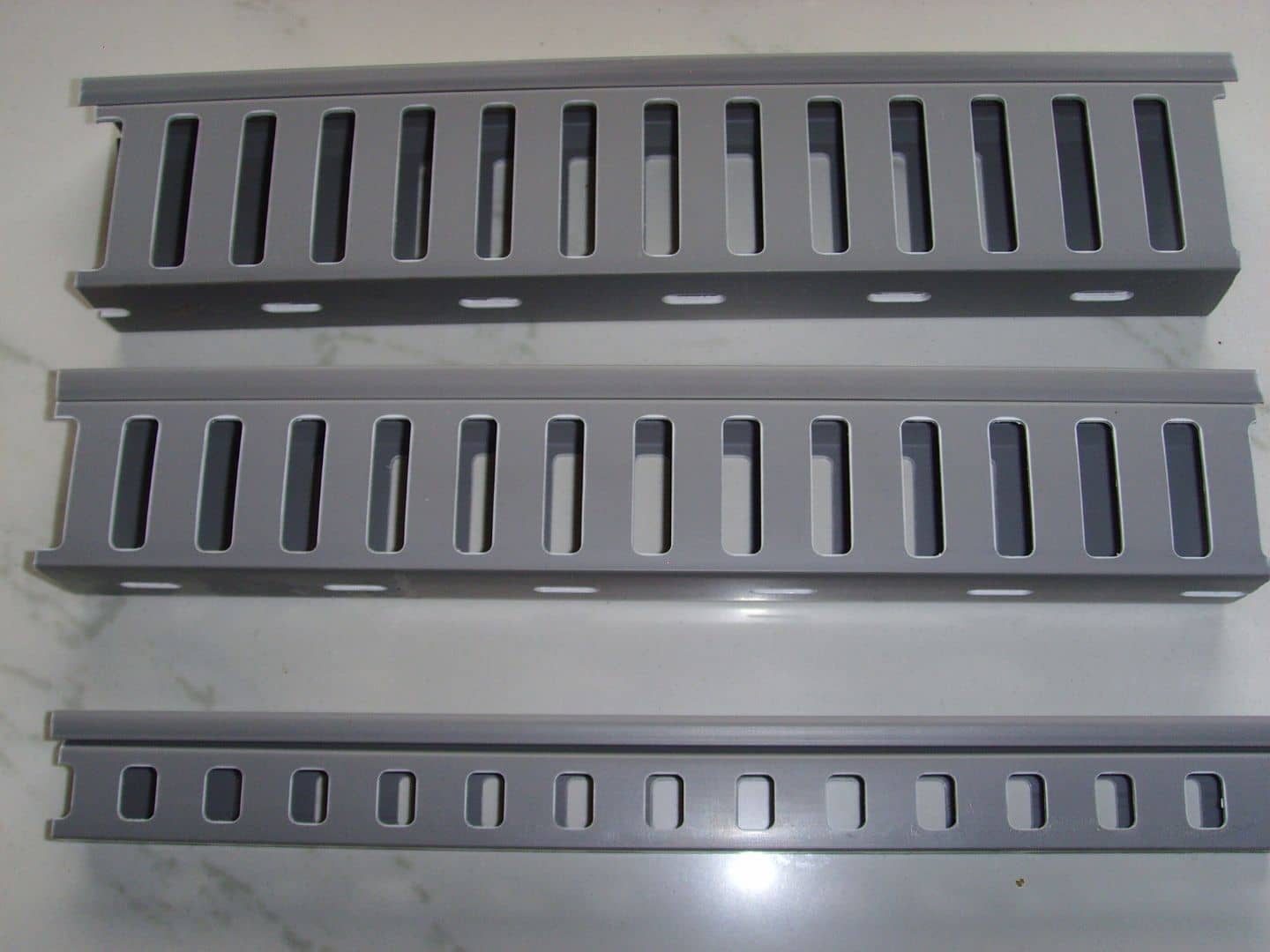

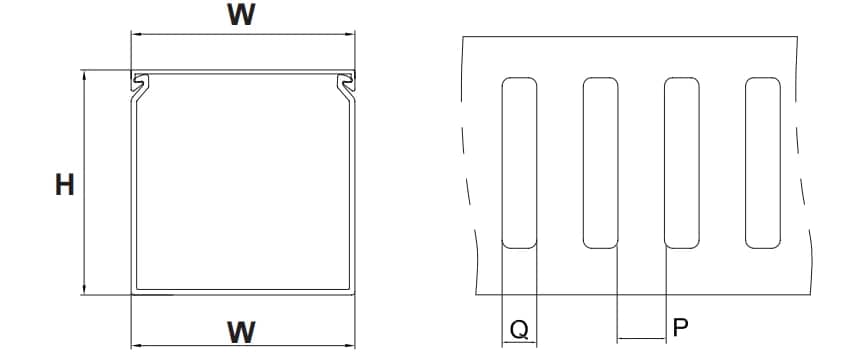

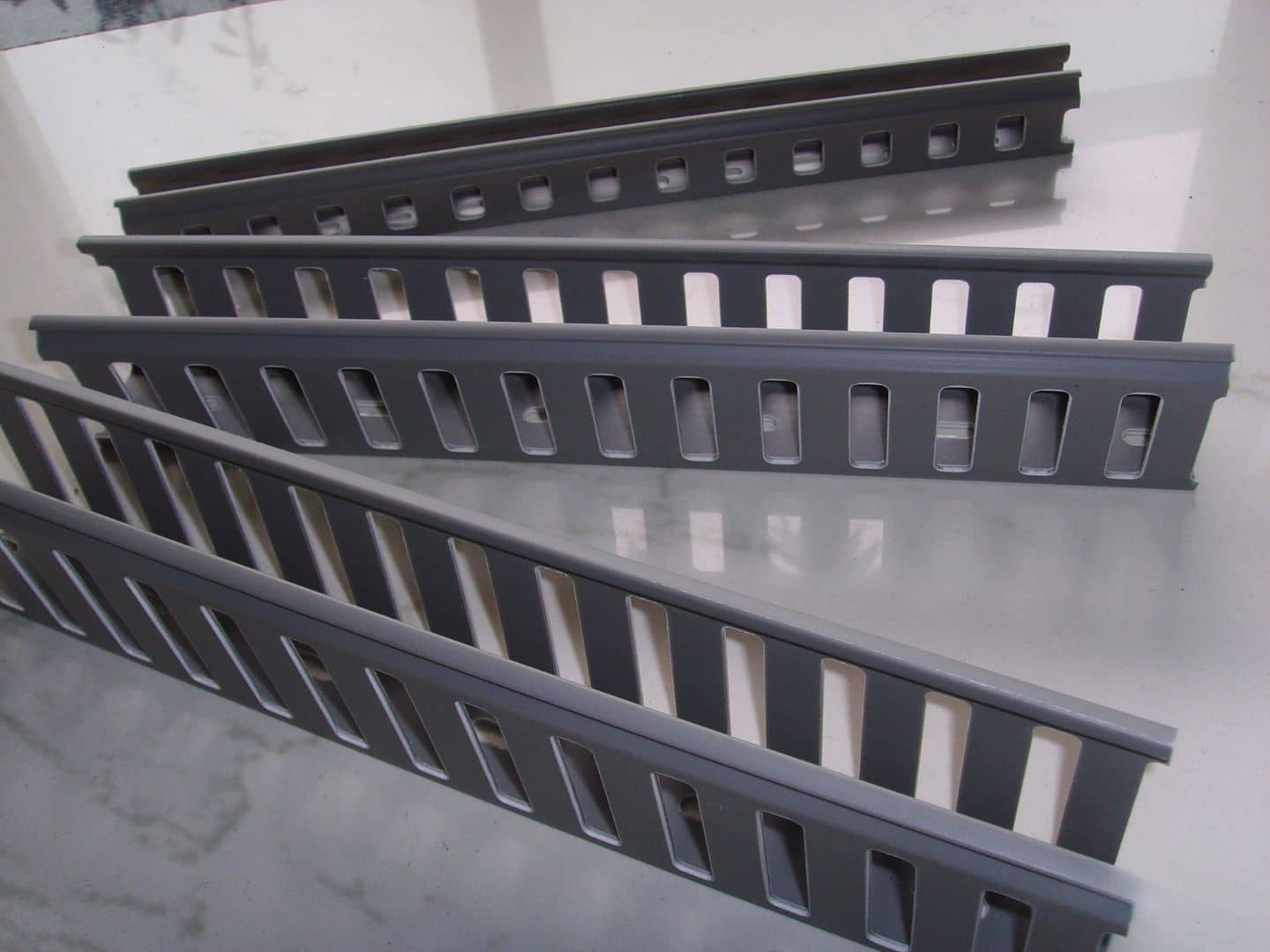

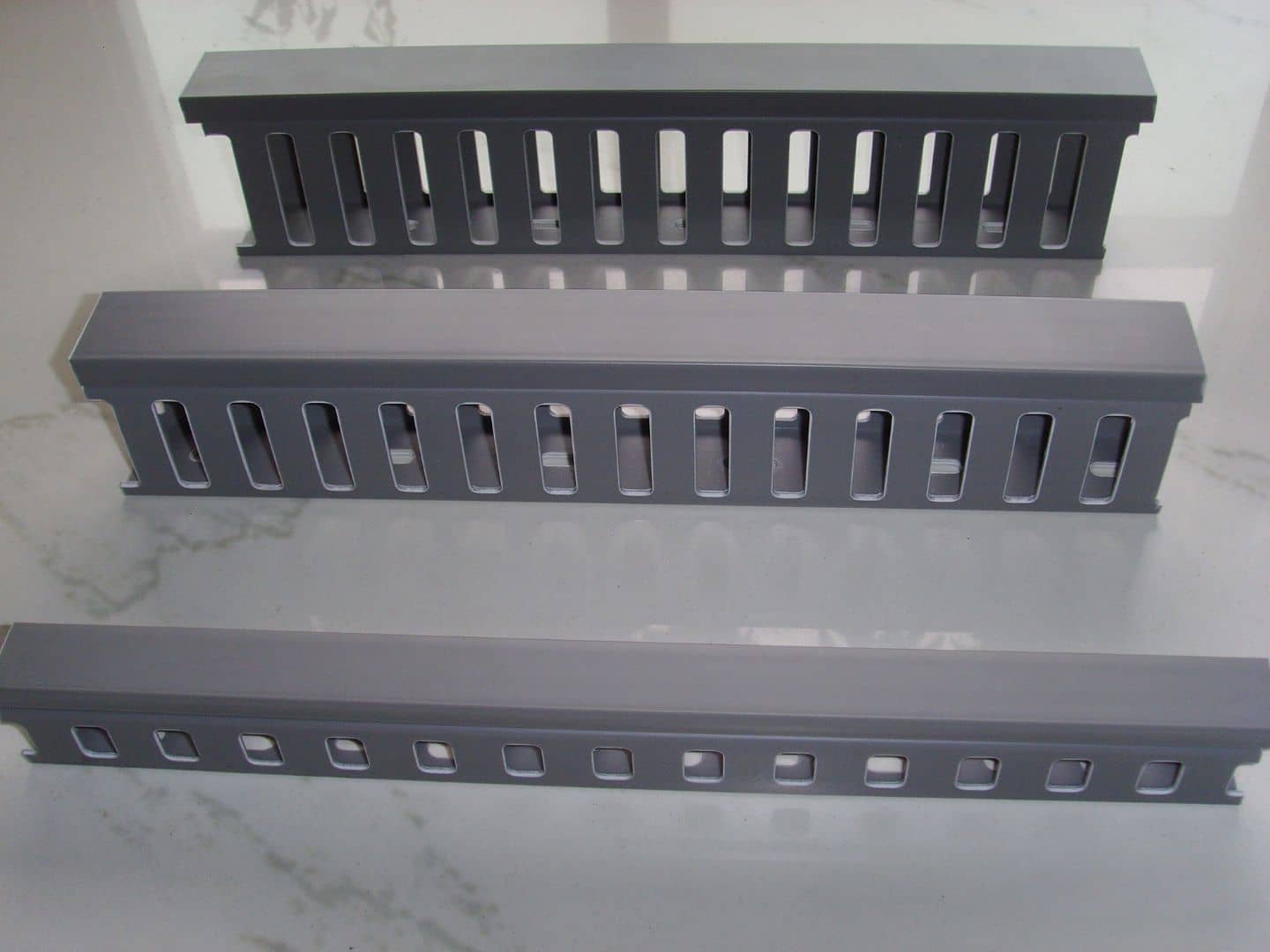

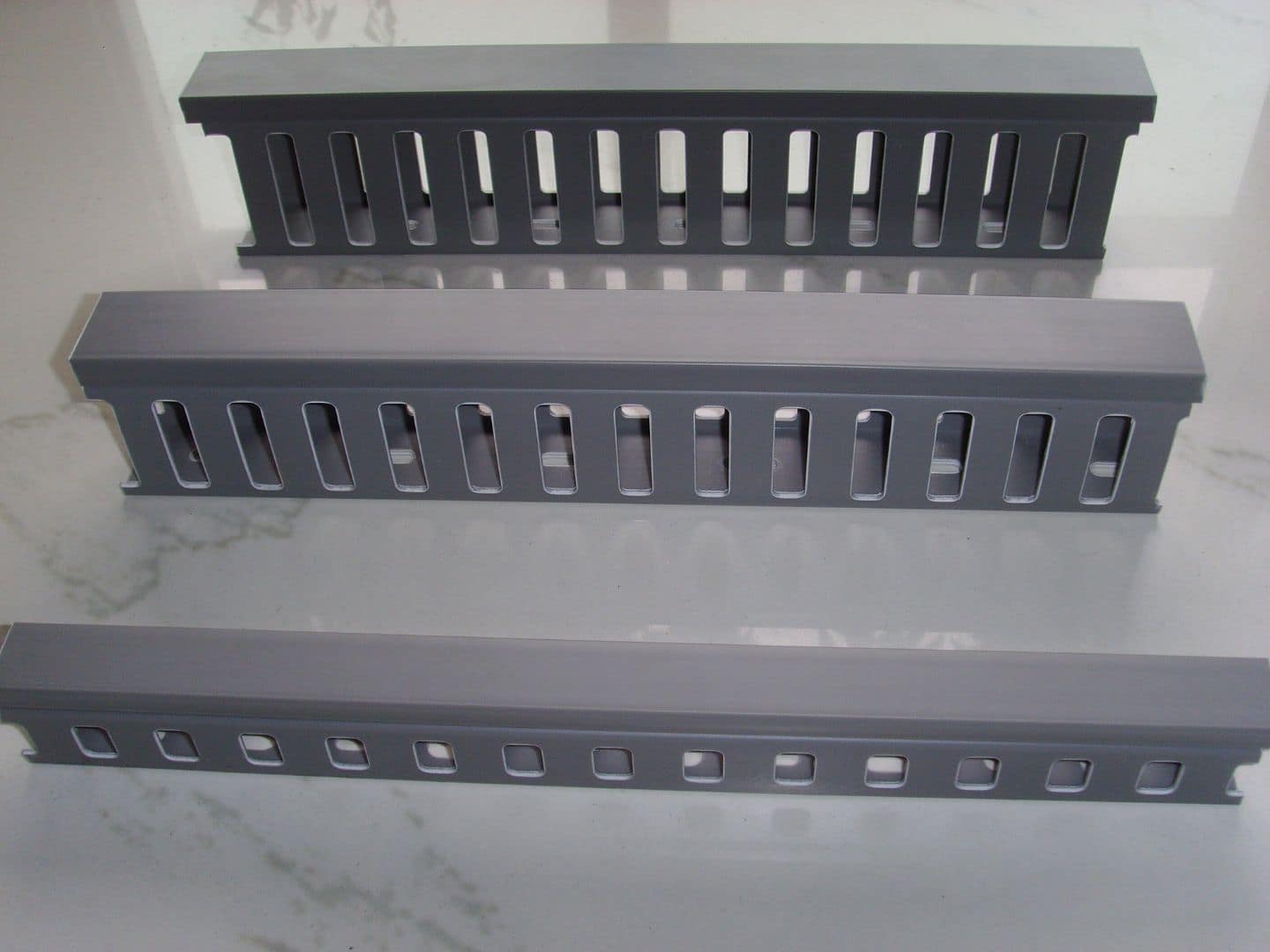

Structure of the Trunking
Punching Details Shown on the Drawings

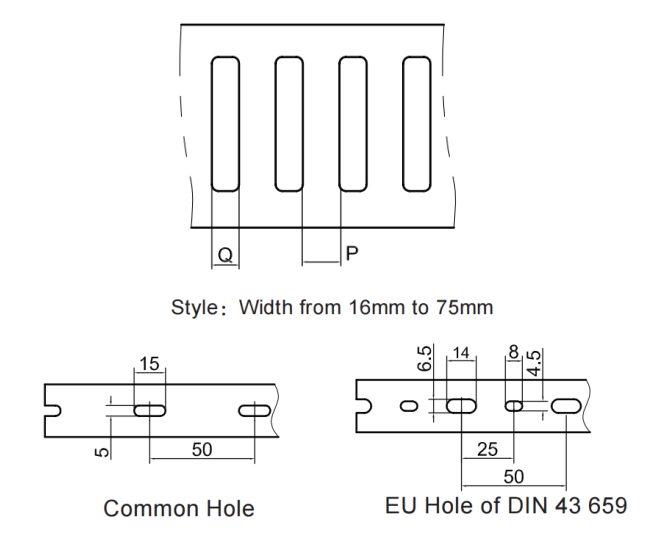

Type: 16mm-75mm Width

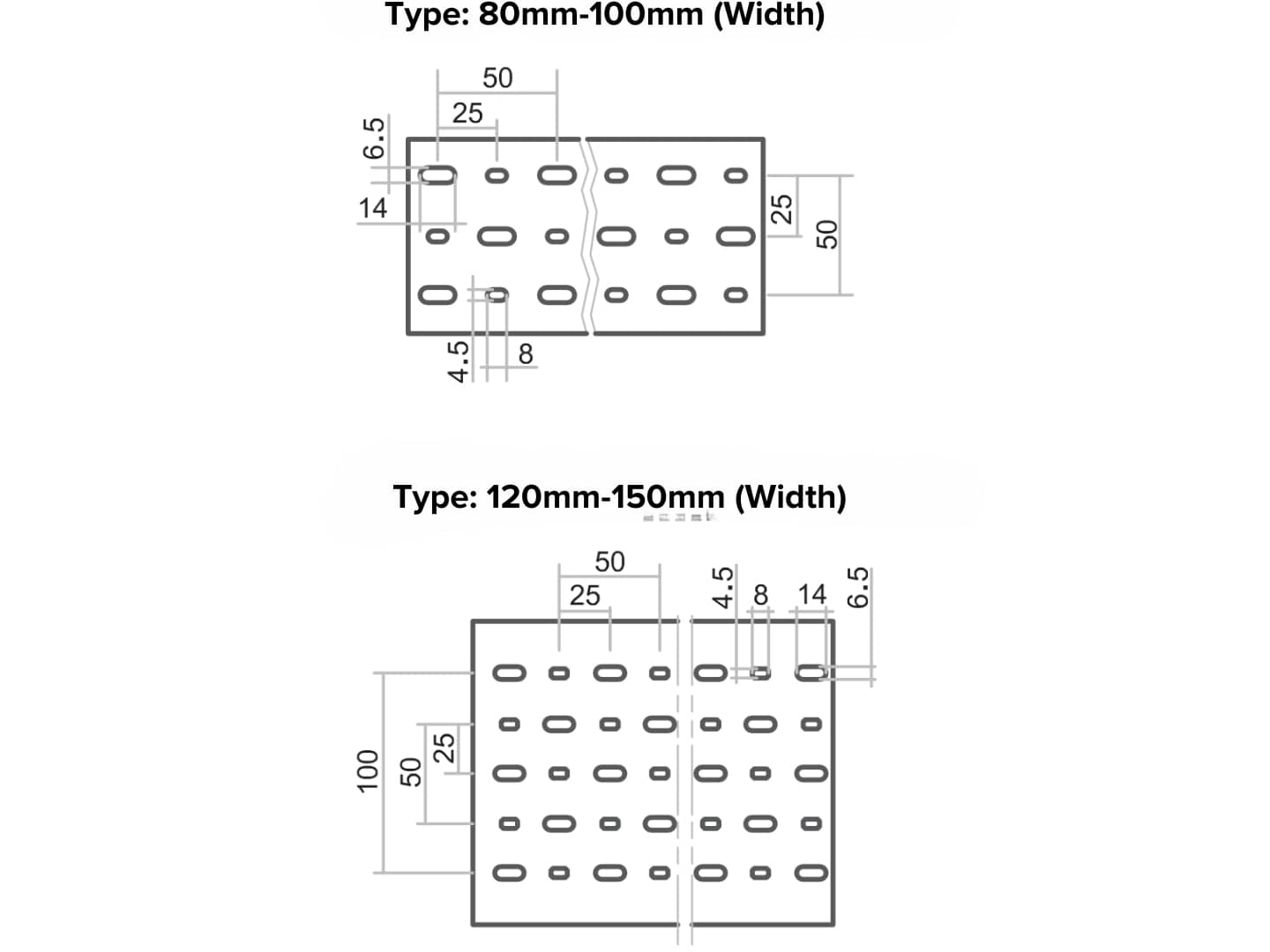

Type: 80mm-150mm Width
Specifications
| Model | Size-W*H
(mm) |
Thickness (mm) |
Pack (pcs/bag) 1pc=2 meters |
Details | |
| Slot Width (mm) Q |
Finger Width (mm) P |
||||
| CDC-1616 | 16×16 | 1.25 | 100 | 8.5 | 11.5 |
| CDC-2020 | 20×20 | 1.25 | 70 | 8.5 | 11.5 |
| CDC-2525 | 25×25 | 1.35 | 60 | 8.5 | 11.5 |
| CDC-2530 | 25×30 | 1.35 | 50 | 8.5 | 11.5 |
| CDC-2540 | 25×40 | 1.35 | 56 | 8.5 | 11.5 |
| CDC-2545 | 25×45 | 1.35 | 50 | 8.5 | 11.5 |
| CDC-2550 | 25×50 | 1.55 | 50 | 8.5 | 11.5 |
| CDC-2560 | 25×60 | 1.6 | 50 | 8.5 | 11.5 |
| CDC-2565 | 25×65 | 1.6 | 44 | 10 | 10 |
| CDC-2580 | 25×80 | 1.75 | 36 | 10 | 10 |
| CDC-3030 | 30×30 | 1.45 | 60 | 8.5 | 11.5 |
| CDC-3050 | 30×50 | 1.55 | 42 | 8.5 | 11.5 |
| CDC-3060 | 30×60 | 1.55 | 42 | 8.5 | 11.5 |
| CDC-3080 | 30×80 | 1.95 | 28 | 10 | 10 |
| CDC-3333 | 33×33 | 1.35 | 44 | 8.5 | 11.5 |
| CDC-3345 | 33×45 | 1.35 | 52 | 8.5 | 11.5 |
| CDC-3365 | 33×65 | 1.95 | 22 | 10 | 10 |
| CDC-33100 | 33×100 | 1.55 | 40 | 10 | 10 |
| CDC-3535 | 35×35 | 1.45 | 50 | 8.5 | 11.5 |
| CDC-3550 | 35×50 | 1.55 | 40 | 8.5 | 11.5 |
| CDC-3580 | 35×80 | 1.95 | 28 | 10 | 10 |
| CDC-4040 | 40×40 | 1.35 | 50 | 8.5 | 11.5 |
| CDC-4060 | 40×60 | 1.75 | 36 | 8.5 | 11.5 |
| CDC-4080 | 40×80 | 1.95 | 24 | 10 | 10 |
| CDC-40100 | 40×100 | 1.95 | 22 | 10 | 10 |
| CDC-4545 | 45×45 | 1.45 | 36 | 8.5 | 11.5 |
| CDC-4565 | 45×65 | 1.55 | 30 | 10 | 10 |
| CDC-5030 | 50×30 | 1.5 | 50 | 8.5 | 11.5 |
| CDC-5035 | 50×35 | 1.5 | 44 | 8.5 | 11.5 |
| CDC-5050 | 50×50 | 1.75 | 30 | 8.5 | 11.5 |
| CDC-5080 | 50×80 | 1.95 | 20 | 10 | 10 |
| CDC-50100 | 50×100 | 1.95 | 20 | 10 | 10 |
| CDC-6040 | 60×40 | 1.55 | 34 | 10 | 10 |
| CDC-6060 | 60×60 | 1.95 | 24 | 8.5 | 11.5 |
| CDC-6080 | 60×80 | 1.95 | 16 | 10 | 10 |
| CDC-60100 | 60×100 | 1.95 | 16 | 10 | 10 |
| CDC-6545 | 65×45 | 1.55 | 25 | 8.5 | 11.5 |
| CDC-6565 | 65×65 | 1.55 | 20 | 10 | 10 |
| CDC-8040 | 80×40 | 1.95 | 24 | 8.5 | 11.5 |
| CDC-8080 | 80×80 | 1.95 | 12 | 10 | 10 |
| CDC-80100 | 80×100 | 1.95 | 12 | 10 | 10 |
| CDC-10050 | 100×50 | 2.15 | 14 | 8.5 | 11.5 |
| CDC-10080 | 100×80 | 2.15 | 12 | 10 | 10 |
| CDC-100100 | 100×100 | 2.25 | 12 | 10 | 10 |
| REMARK: | |||||
| 1. Color : Dark grey, white, blue,organge,and black. | |||||
Specifications
Specifications
Secondary Fabrication for Your Choice
If you have a preferred thickness for your products or want to add punches or adhesive tapes, let us know and we can make the appropriate adjustments to fit your demands.
