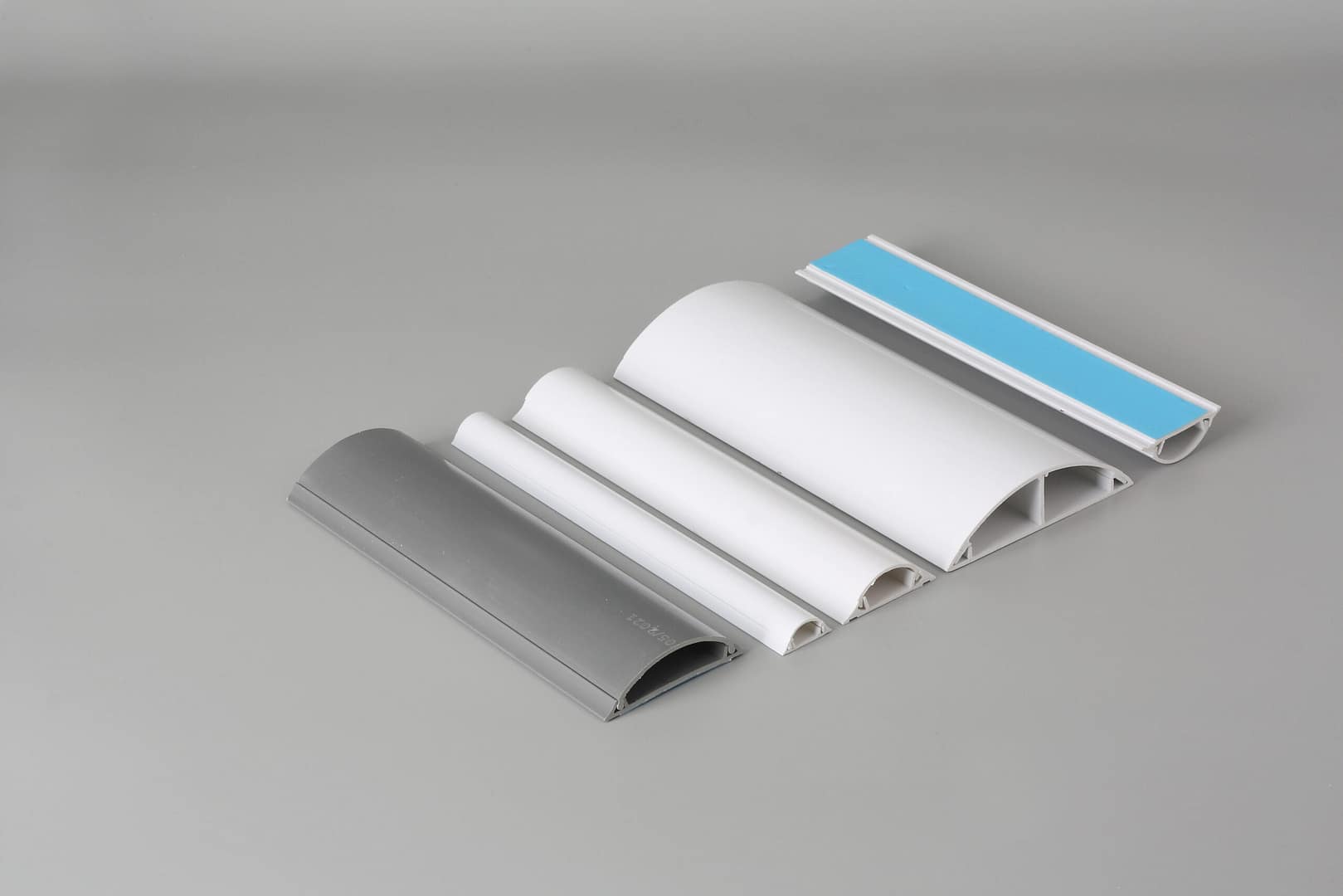

D-Line Trunking
Easy-to-Install D-Line Trunking Products

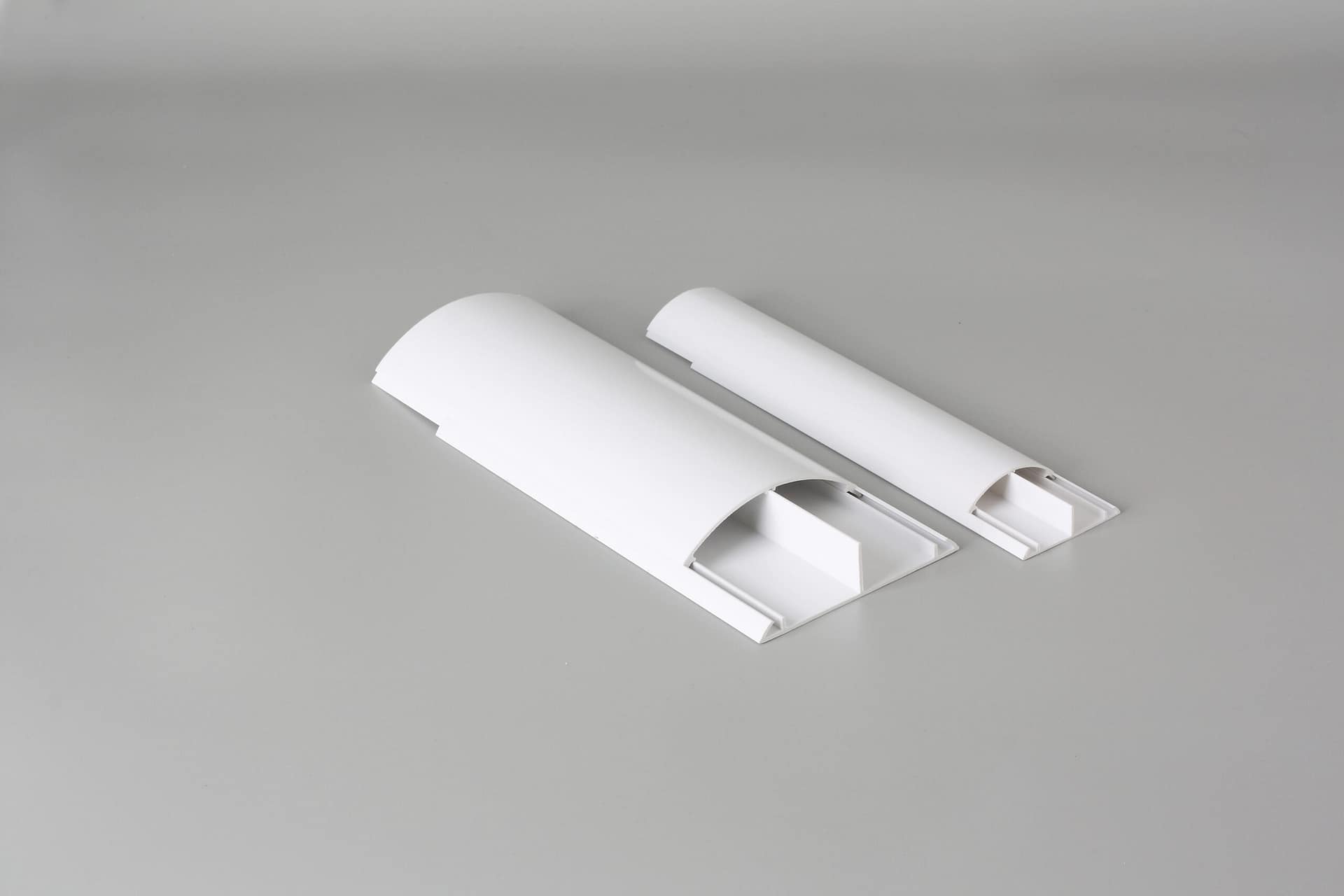

Budgie’s half-moon trunking tray boasts superior durability and hassle-free installation like no other. This cable tray is made from high-quality PVC material that greatly withstands heat, and electricity while providing amazing protection to the wires within. Its smart design allows for installation even in locations with high foot or trolley traffic, making them excellent options for malls, hospitals, or other public locations.
With our strong production capabilities and professional team of designers by your side, we can customize your half-moon trays to suit your specific needs. Dimensions of the tray, including the arc height and width, are adjustable, along with the product’s color. We can also include double-sided adhesive tape on the tray’s base for easier and faster installations.
RoHS and SABS Approved
Products are made per established global guidelines for safety and performance.
Lead-Free
Materials are strictly screened to avoid any lead or other harmful chemicals in our products.
Shock and Fire Resistant
Plastic has self-extinguishing and high shock resistance that conforms to UL 94 VO standards.
Ingenious Design
The crafty design makes the installation of the product easy and maintenance a breeze.
Application of Slot Wiring Duct (A)
Application of Slot Wiring Duct (A)

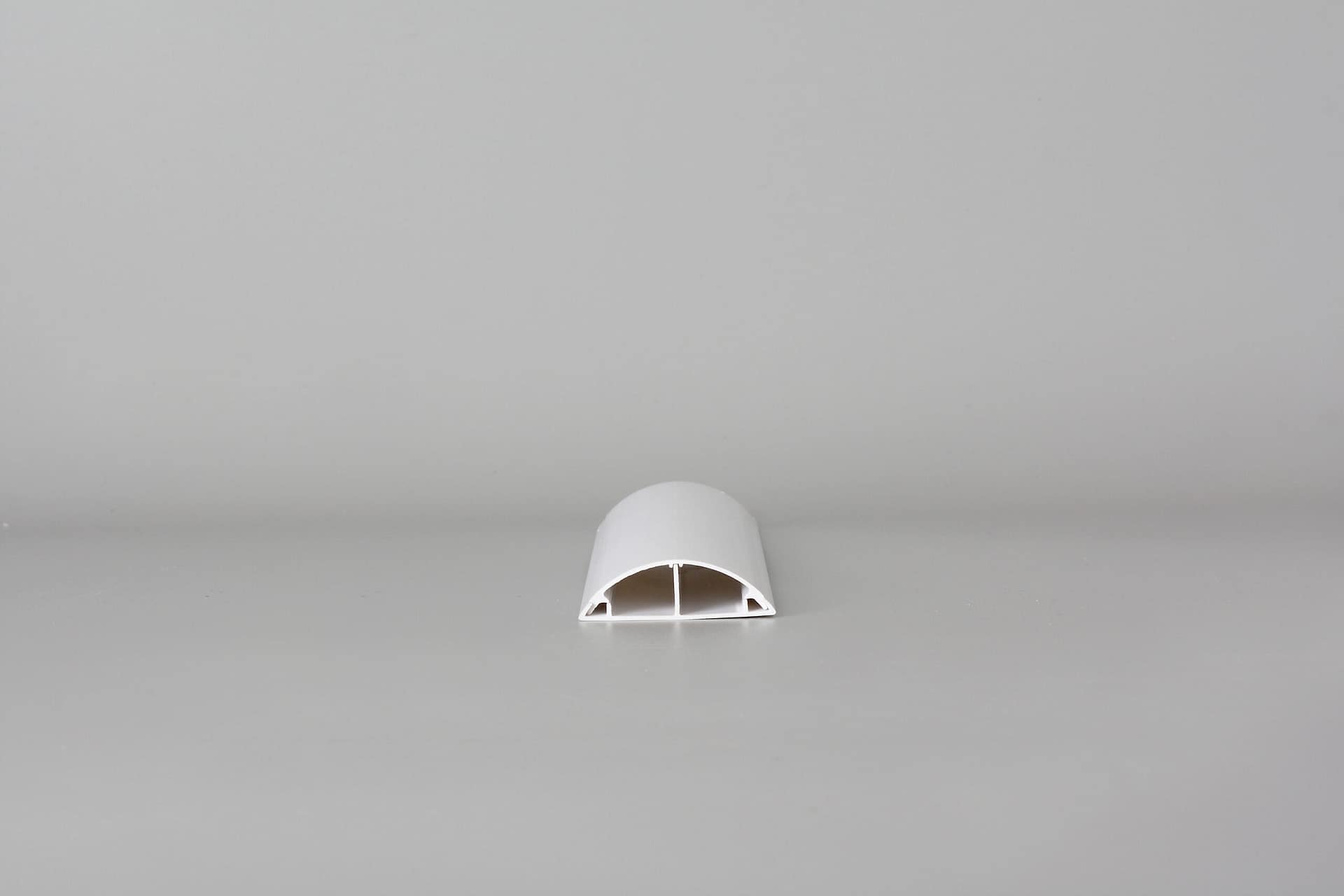

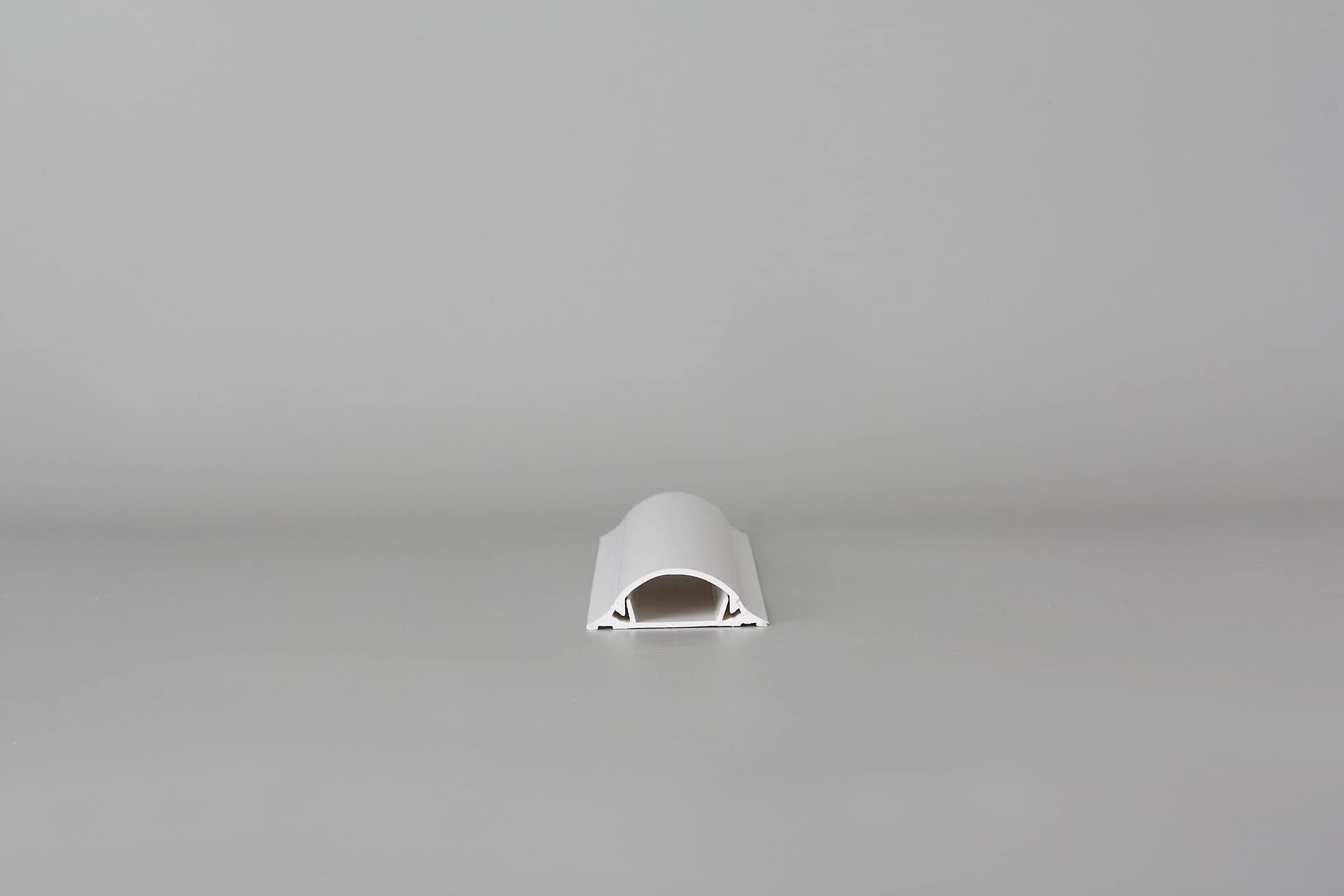

Front View
Side View
Overlooking View
Application of Slot Wiring Duct (A)
Style: 16mm-75mm High
Style: 80mm-150mm High
Specifications
| Picture | Model | Size-W*H (mm) |
Cover
Thickness |
Pack (pcs/bag) |
Trunking
Fittings |
Dimension (mm) |
|||
| Outside/W | Inside/W | Outside/H | Inside/H | ||||||
 |
ACT-3010 | 25×10 | 1.15 | 30 | NO | 24 | 18.2 | 9.8 | 7.6 |
 |
ACT-3510 | 35×10 | 1.25 | 25 | NO | 33 | 20.3 | 10 | 8.5 |
 |
ACT-5015 | 48×14 | 1.4 | 20 | NO | 48.5 | 29 | 14.8 | 12 |
 |
ACT-5015FL | 50×10 | 1.1 | 20 | NO | 45 | 26.7 | 14 | 11 |
 |
ACT-7020 | 65×16 | 2.1 | 15 | NO | 64 | 46.2 | 15 | 13.2 |
 |
ACT-10025FL | 100×25 | 2 | 10 | NO | 96 | 67.8 | 24.5 | 20.3 |
| REMARK: | |||||||||
| 1. Color : white, bluish white, dark grey , brown. | |||||||||
| 2. Can with adhesive tape or without adhesive tape on bottom | |||||||||
Specifications
Specifications
Secondary Fabrication for Your Choice
If you have a preferred thickness for your products or want to add punches or adhesive tapes, let us know and we can make the appropriate adjustments to fit your demands.
What Budgie Does Better
Full Range
A complete range of PVC-U trunking products makes sure we have what you need.
Superior Quality
Keen attention to detail, from selecting materials to injection molding.
Streamlined Production
In-house production allows for faster and well-managed output.
Expert QC Team
Seasoned auditors diligently ensure consistency in aesthetics and performance.
Fast Deliveries
Delivering within fast lead times guarantees regular restocking of your inventory to meet quotas.
Comprehensive Tech Support
Get all the support you need from a professional technical support team.
